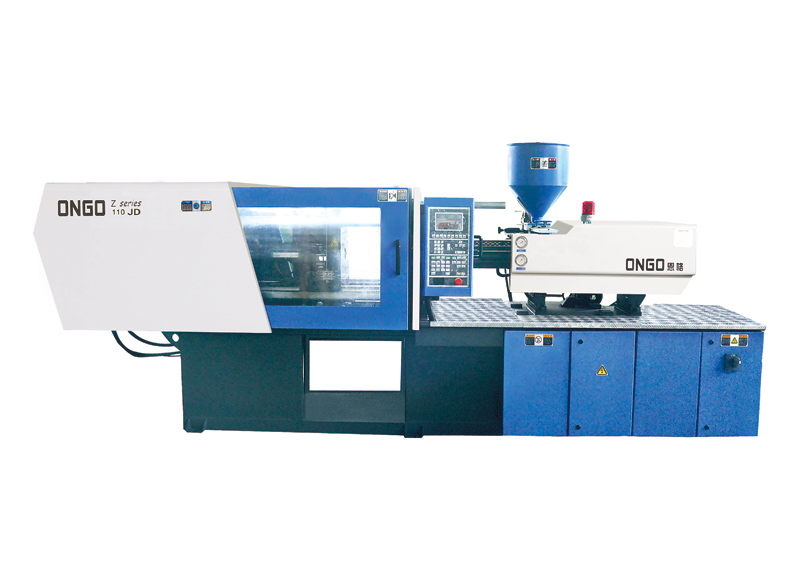

| 项目 | Item | 单位 | Z230 | ||
| 注射装置 | INJECTION UNIT | A | B | C | |
| 螺杆直径 | Screw diameter | mm | 45 | 50 | 55 |
| 理论注射容量 | Shot volume(theoretical) | cm3 | 397 | 490 | 593 |
| 注射重量 | Injection weight(ps) | g | 362 | 446 | 540 |
| 注射速率 | Injection rate | g/s | 124 | 154 | 186 |
| 注射压力 | Injection pressure | Mpa | 207 | 168 | 138 |
| 螺杆转速 | Screw speed | rpm | 155 | ||
| 锁模装置 | CLAMPING UNIT | ||||
| 锁模力 | Clamping force | kN | 2300 | ||
| 移模行程 | Open stroke | mm | 475 | ||
| 拉杆间距(宽×高) | Space between tie bars(W×H) | mm | 520×520 | ||
| 最大模厚 | Max.Mold height | mm | 530 | ||
| 最小模厚 | Min.Mold height | mm | 200 | ||
| 顶出行程 | Ejector stroke | mm | 140 | ||
| 顶出力 | Ejector stroke | kN | 70 | ||
| 其他 | OTHERS | ||||
| 最大油泵压力 | Max Pump pressure | kW | 16 | ||
| 油泵电机功率 | Pump motor power | kW | 18.5 | ||
| 电热功率 | Heating power | kW | 14.8 | ||
| 外形尺寸(长×宽×高) | Machine dimension(L×W×H) | m | 5.68×1.50×2.14 | ||
| 油箱容积 | Olitank cubage | L | 300 | ||
| 机器重量 | Machine weight | t | 7 | ||
