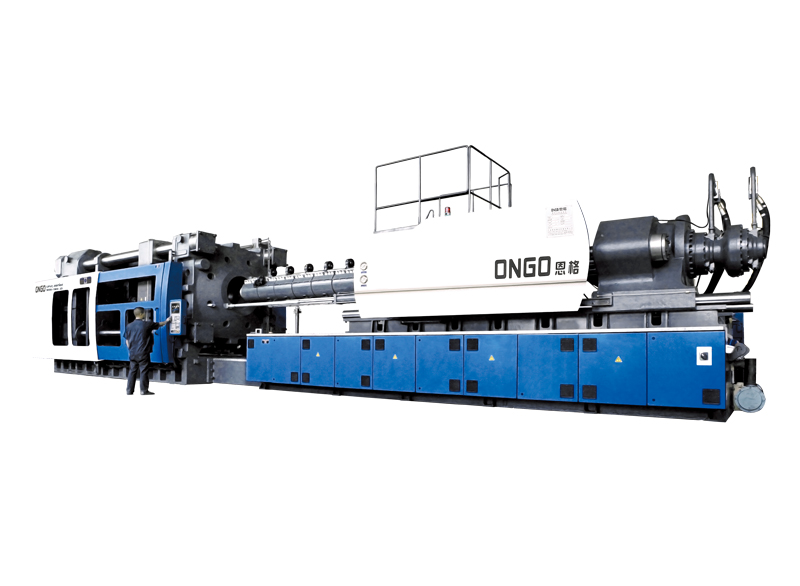

| 项目 | Item | 单位 | Z2300 | |||
| 注射装置 | INJECTION UNIT | A | B | C | D | |
| 螺杆直径 | Screw diameter | mm | 140 | 150 | 160 | 170 |
| 理论注射容量 | Shot volume(theoretical) | cm3 | 11847 | 13600 | 15473 | 17468 |
| 注射重量 | Injection weight(ps) | g | 10780 | 12376 | 14081 | 15896 |
| 注射速率 | Injection rate | g/s | 962 | 1177 | 1339 | 1512 |
| 注射压力 | Injection pressure | Mpa | 201 | 175 | 154 | 136 |
| 螺杆转速 | Screw speed | rpm | 60 | |||
| 锁模装置 | CLAMPING UNIT | |||||
| 锁模力 | Clamping force | kN | 23000 | |||
| 移模行程 | Open stroke | mm | 1870 | |||
| 拉杆间距(宽×高) | Space between tie bars(W×H) | mm | 1800×1620 | |||
| 最大模厚 | Max.Mold height | mm | 1700 | |||
| 最小模厚 | Min.Mold height | mm | 700 | |||
| 顶出行程 | Ejector stroke | mm | 450 | |||
| 顶出力 | Ejector stroke | kN | 565 | |||
| 其他 | OTHERS | |||||
| 最大油泵压力 | Max Pump pressure | kW | 16 | |||
| 油泵电机功率 | Pump motor power | kW | 56+56+56 | |||
| 电热功率 | Heating power | kW | 135.7 | |||
| 外形尺寸(长×宽×高) | Machine dimension(L×W×H) | m | 18×3.6×4 | |||
| 油箱容积 | Olitank cubage | L | 2600 | |||
| 机器重量 | Machine weight | t | 150 | |||
