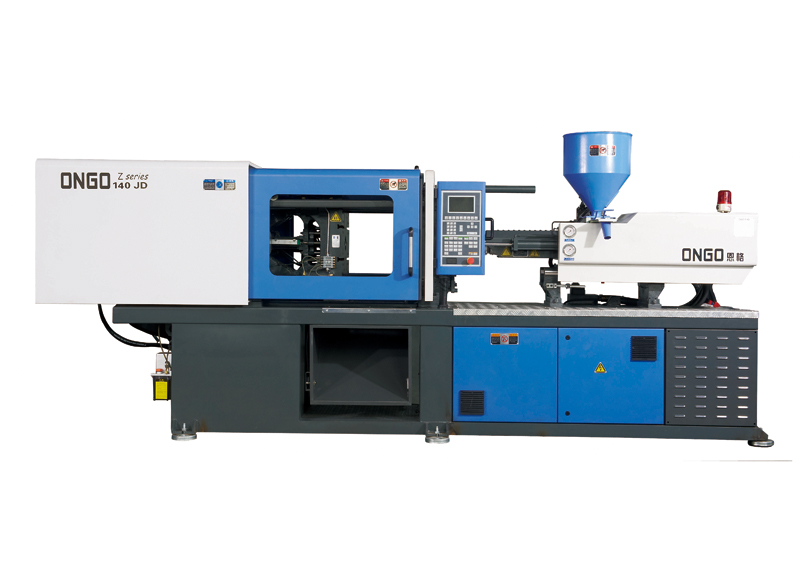

| 项目 | Item | 单位 | Z140 | ||
| 注射装置 | INJECTION UNIT | A | B | C | |
| 螺杆直径 | Screw diameter | mm | 38 | 42 | 45 |
| 理论注射容量 | Shot volume(theoretical) | cm3 | 226 | 277 | 318 |
| 注射重量 | Injection weight(ps) | g | 206 | 252 | 289 |
| 注射速率 | Injection rate | g/s | 94 | 115 | 132 |
| 注射压力 | Injection pressure | Mpa | 208 | 171 | 148 |
| 螺杆转速 | Screw speed | rpm | 185 | ||
| 锁模装置 | CLAMPING UNIT | ||||
| 锁模力 | Clamping force | kN | 1400 | ||
| 移模行程 | Open stroke | mm | 380 | ||
| 拉杆间距(宽×高) | Space between tie bars(W×H) | mm | 420×420 | ||
| 最大模厚 | Max.Mold height | mm | 450 | ||
| 最小模厚 | Min.Mold height | mm | 160 | ||
| 顶出行程 | Ejector stroke | mm | 120 | ||
| 顶出力 | Ejector stroke | kN | 50 | ||
| 其他 | OTHERS | ||||
| 最大油泵压力 | Max Pump pressure | kW | 16 | ||
| 油泵电机功率 | Pump motor power | kW | 13 | ||
| 电热功率 | Heating power | kW | 9.3 | ||
| 外形尺寸(长×宽×高) | Machine dimension(L×W×H) | m | 4.48×1.33×1.90 | ||
| 油箱容积 | Olitank cubage | L | 270 | ||
| 机器重量 | Machine weight | t | 4 | ||
