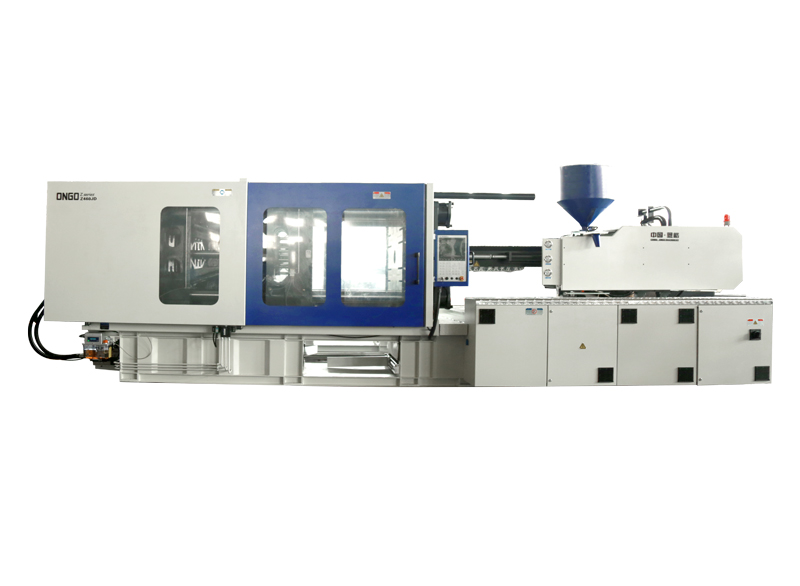

| 项目 | Item | 单位 | Z530 | |||
| 注射装置 | INJECTION UNIT | A | B | C | D | |
| 螺杆直径 | Screw diameter | mm | 75 | 80 | 85 | 90 |
| 理论注射容量 | Shot volume(theoretical) | cm3 | 1811 | 2061 | 2326 | 2608 |
| 注射重量 | Injection weight(ps) | g | 1648 | 1875 | 2117 | 2373 |
| 注射速率 | Injection rate | g/s | 386 | 442 | 499 | 560 |
| 注射压力 | Injection pressure | Mpa | 191 | 168 | 148 | 132 |
| 螺杆转速 | Screw speed | rpm | 130 | |||
| 锁模装置 | CLAMPING UNIT | |||||
| 锁模力 | Clamping force | kN | 5300 | |||
| 移模行程 | Open stroke | mm | 770 | |||
| 拉杆间距(宽×高) | Space between tie bars(W×H) | mm | 820×820 | |||
| 最大模厚 | Max.Mold height | mm | 810 | |||
| 最小模厚 | Min.Mold height | mm | 330 | |||
| 顶出行程 | Ejector stroke | mm | 230 | |||
| 顶出力 | Ejector stroke | kN | 150 | |||
| 其他 | OTHERS | |||||
| 最大油泵压力 | Max Pump pressure | kW | 16 | |||
| 油泵电机功率 | Pump motor power | kW | 55 | |||
| 电热功率 | Heating power | kW | 32.6 | |||
| 外形尺寸(长×宽×高) | Machine dimension(L×W×H) | m | 8.82×2.05×2.82 | |||
| 油箱容积 | Olitank cubage | L | 900 | |||
| 机器重量 | Machine weight | t | 20 | |||
